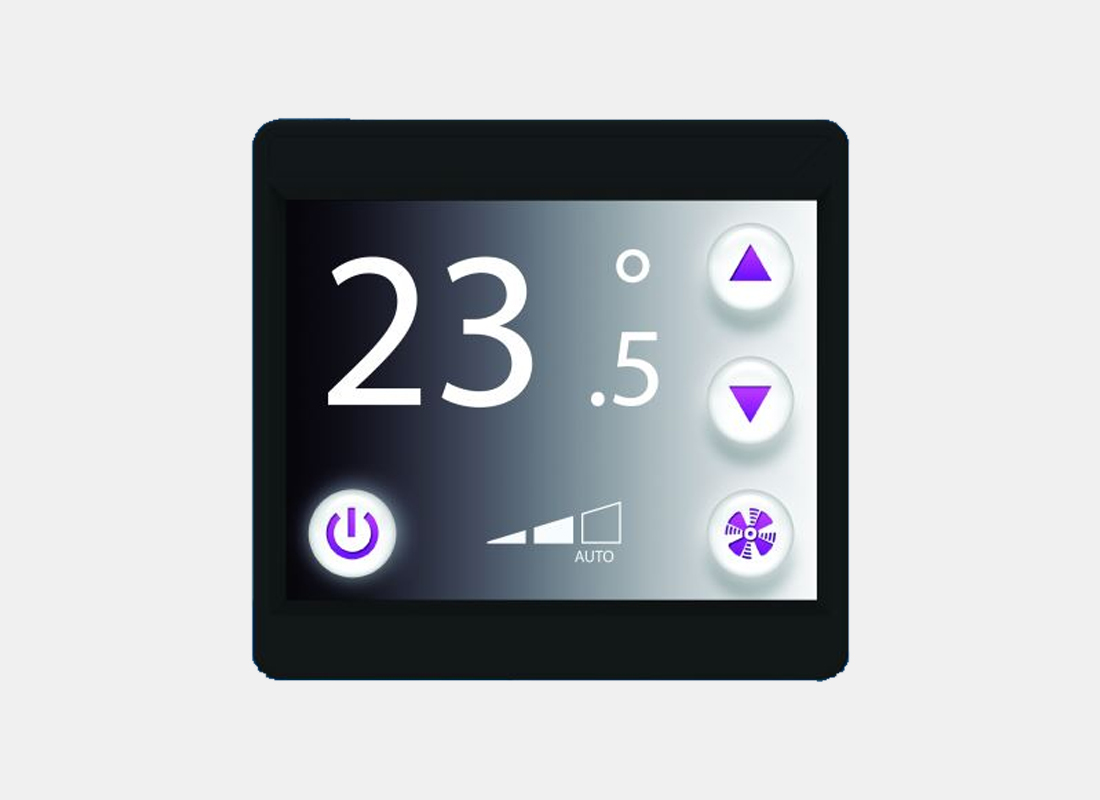

Ontrol R-ION Sedona Controller

Ontrol R-ION Sedona Controller

Ontrol R-ION series products are programmable room controllers ideal for managing a wide range of individual building products such as fan-coil units and VAV boxes.

Extremely flexible customisation options are available thanks to configurable color touchscreen, full programmability and custom logo placement options.

Appearence: Different frame styles available – contact us for more information

Product Description

In addition to basic fan-speed and temperature settings, lighting controls can easily be integrated, as well as custom application specific functions (e.g. Do Not Disturb / Make Up Room buttons for hotel rooms).

Communication

R-ION controllers support various industry standard protocols simultaneously. The main supervisory system communication (Port 1) is serial RS485 or wireless IP depending on basic version:

  • Serial versions support BACnet MSTP (slave) and Modbus RTU in either master or slave configuration.

Optionally, one or more of the following auxilliary communication ports may be available:

  • Second RS485 port (Modbus & DMX drivers available)
  • Belimo MP-Bus port
  • DALI (Digital Addressable Lighting Interface) port

Two-piece interlocking design greatly simplifies installation on the wall-unit side, as the IO module can be located close to the terminal unit being controlled, with only comms wiring into the wall unit.

Benefits

  • 3.5” resistive color touch-screen
  • Freely programmable
  • Fully customizable graphics
  • Powered by Sedona Framework
  • Belimo MP-Bus option
  • Dali (Digital Addressable Lighting Interface) option
  • DMX driver available
  • Low profile, only 10.5 mm thick
  • Optional Input/output modules optimized for terminal units (e.g. Fan-coil, VAV…)

Developed by Tridium, the Sedona Framework™ is the industry’s first, open source development framework that provides a complete software platform for developing, deploying, integrating, and managing pervasive device applications. It brings the power of programmable control and the Internet down to edge devices. The Sedona Framework distributes decision making control and manageability to any device and brings intelligence and connectivity to the network edge and back.
