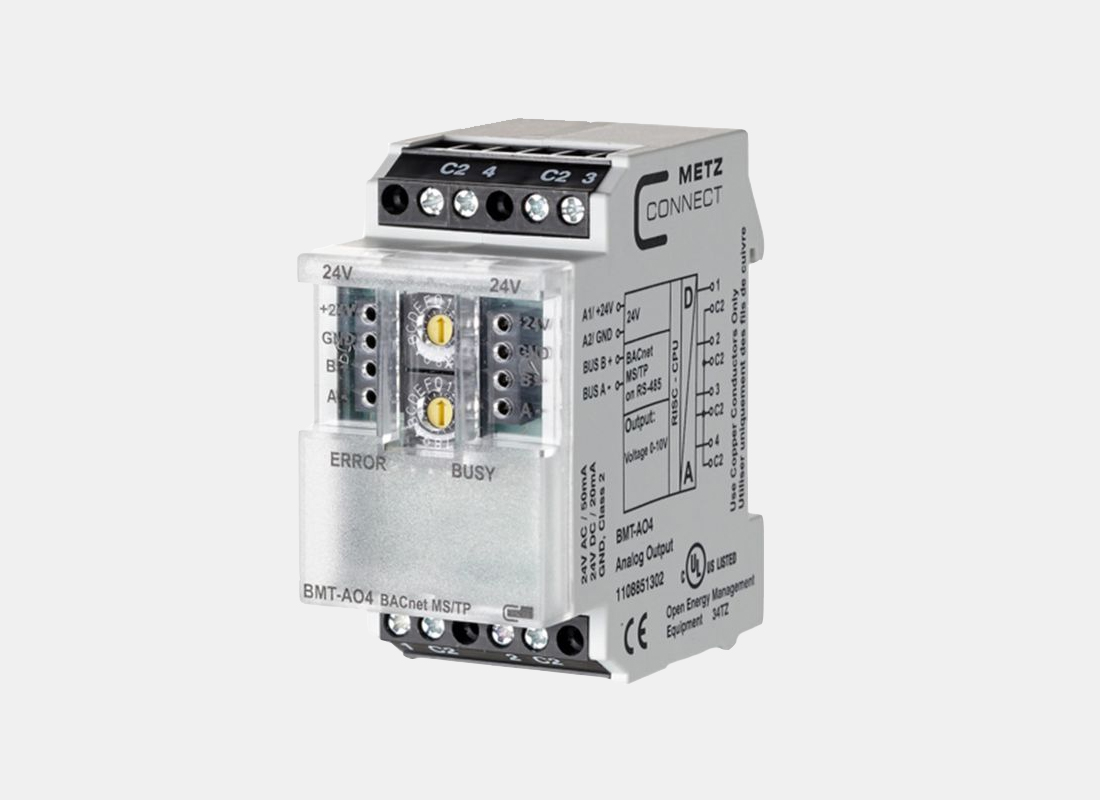

BMT-AO4

Metz Connect

The BACnet MS/TP module with 4 analog outputs was developed for decentralized switching tasks. It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc.

GET A QUOTE

The outputs can be output by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front.Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

For Technical Data please see Tech specs

Protocol
BACnet MS/TP
Addressing range
00 to F9
Bus interface
RS485 (two-wire bus)
Transmission rate
9600 to 115200 bit/s
Operating voltage
24 V AC/DC ± 10% (SELV)
Current consumption
50 mA (AC) / 20 mA (DC)
Relative duty cycle
100 %
Outputs
4 x analog
Output / voltage
0 V to 10 V DC
Output / current
5 mA at 10 V DC
Output / resolution
10 mV / digit
Display
Green and red LED
Dimensions (W x H x D)
35 x 69.3 x 60 mm
Weight
72 g
Operating temperature range
-5 °C to +55 °C
Storage temperature range
-20 °C to +70 °C
Ingress protection for housing / terminal blocks
IP40 / IP20
