Distech Controls Eclypse S1000

The Eclypse ECY-S1000 controller is sized to cost effectively meet the requirements of any HVAC application from small to medium to large systems.

The controller can be expanded to support up to 20 input/output modules (320 points), able to create and power successive rows of modules
Design an energy-efficient solution with state-of-the-art technologies, offering easy local and remote operation
Advanced BACnet/IP connected device for all HVAC equipment and Plant Room applications
Utilising the Facilities platform you can design, deploy, remotely manage and maintain your entire portfolio

Product Description & Topology

• Support for a range of communication protocols such as BACnet MS/TP, BACnet/SC, BACnet I/P, MQTT, Modbus RTU, Modbus TCP, and M-Bus

• With the RESTful API, data can be accessed from different applications, such as energy dashboards, analytics tools, and mobile applications

• Integrates up to three RS-485 ports

• Available remote access to program, configure, or maintain the installation, reducing costs associated with on-site visits

• Terminal blocks are uniquely identified and color-coded for clarity and to prevent wiring mistakes

• Embedded alarms, trend log and schedule support allows for fully distributed data and logic

• Automatic email notifications for system status and alarms to ensure faster system servicing and response time

• Two Ethernet ports (100Mbps) that can be configured individually for easy daisy-chain installation

• Connectivity packs enable remote devices to be added to a connector in Eclypse Facilities. The connectivity packs along with optional I/O and expansion modules provide ultimate flexibility and expandability to customize your project needs.

• Readily supports Atrius Facilities that simplifies installation and maintenance of systems and increases the efficiency of building operations.

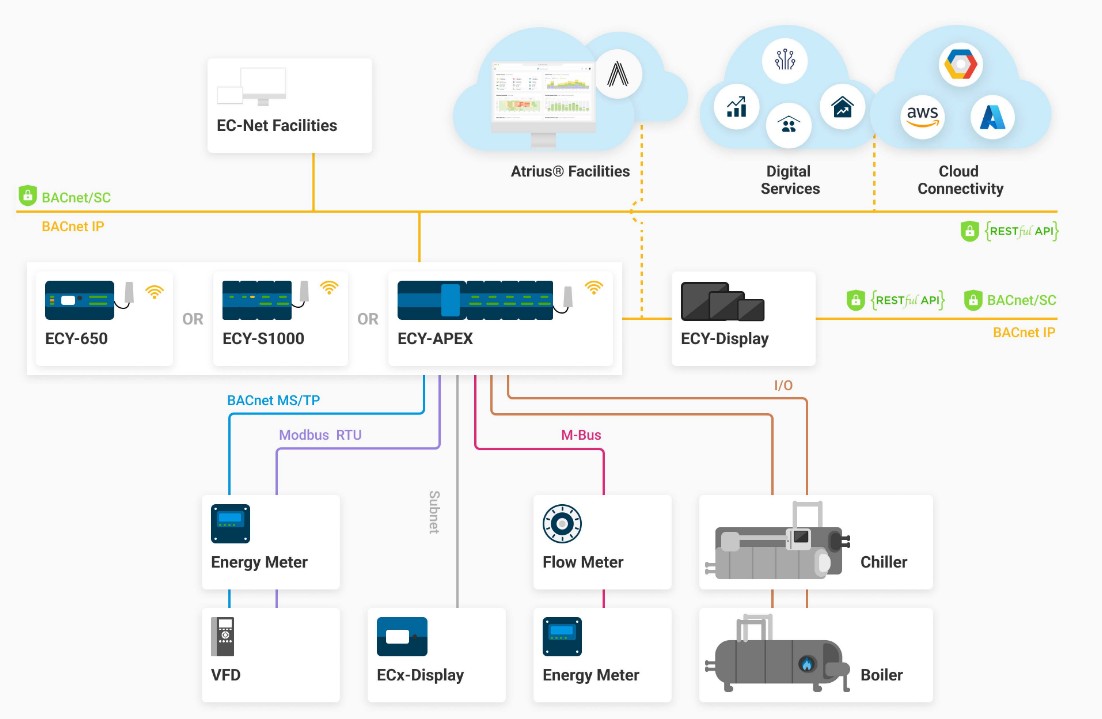

HVAC/Plant Room Application Example

Distech Eclypse Solutions & Topology for your BMS

The Eclypse range of Connected IP and Wi-Fi Product Series with built-in RESTful API, provides an all-encompassing solution for System & Building Automation Control. Configured with the EC-Net Software Platform, a web-based multi-protocol automation and energy management platform, you can manage all building applications up to enterprise-level, across a wide range of verticals.

Distech Eclypse Connected Building Solutions Resources

The complete portfolio of Eclypse Controllers, Sensors and Displays are available now from us at One Sightsolutions, the longest-serving UK Distech Distributor. Supporting you from beginning to end of your project, with product training and industry-leading technical support.

Distech EC-Net Training Certification for EC-BOS and Eclypse Controllers

The EC-Net Training gives you the Certification and skills to create your Distech integration projects. Allowing multiple Niagara-based EC-BOS series controllers, as well as other IP-based devices such as the ECLYPSE™ Connected IP and Wi-Fi products series, to be networked together and unleash limitless integration potential.

Ask us about getting Certified
